MISSION CRITICAL HVAC MANUFACTURER

MS Series

Explosion Proof Mini-Split System

The MS Series offers a versatile split-system solution for hazardous environments where space is limited. Comprising a slim indoor air handler and a rugged outdoor condensing unit, this series utilizes inverter-driven technology to deliver precise cooling (and optional heating) ranging from 9,000 to 36,000 BTU/hr.

9,000 – 36,000 BTU

Cool Only

or

Heat Pump

Inverter Driven

Class 1 Div. 2, Groups B/C/D

ASHRAE_Logo 1.png
csa-logo-white 1.png
logo 1 (2).png

Higher Efficiency, Low Profile Hazardous Cooling

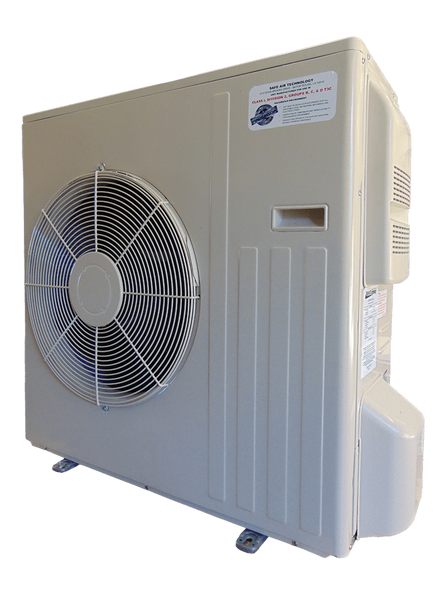

The MS-CU/AH® Series is designed for applications where traditional ducted systems are impractical, such as small control rooms, analyzer shelters, or modular buildings in hazardous zones. The system features a "Mini-Split" design with a slim, wall-mounted indoor air handler connected to a powerful outdoor condensing unit.


Equipped with advanced Inverter-driven compressors and Electronic Expansion Valves (LEV), the MS Series offers superior energy efficiency and precise temperature control compared to traditional on/off systems. The units are available in both Cool Only and Heat Pump configurations, ensuring year-round climate control for critical equipment and personnel.


  • Inverter Technology: Variable speed compressor adapts to load for energy savings and stable temperatures

  • Flexible Power: Dual-rated for 208-230V/60Hz and 220-240V/50Hz global applications.

  • Advanced Controls: Includes a wireless handheld controller and a Division 2 approved wall-mount thermostat with LCD display.

  • Durability: Dense insulation for noise reduction and vibration isolation for smooth operation.

  • Safety: Anti-short cycle timer, auto-restart after power outage, and high/low-pressure safety circuits.

  • Maintenance: Washable long-life filters and easy-access panels.

Request A Quote
Product Overview

Refrigerant

Sleeve Sizes

Certification

Dehumidification

Controls

Voltage

Compliance

Heating Capacity

Cooling Range

Pressurization

Function

Features

WCSK Series

WHPSK Series

Features

VAC Series

VACPB Series

Airflow Config

Mount Type

Dimensions (Indoor)

Length: 31"–46"

Dimensions (Outdoor)

Length: 31"–33"

System Type

Split System (Outdoor Condenser + Indoor Air Handler)

Economizer Activation

Lead Time

Dimensions

Voltage

208-230V / 1ph / 60Hz OR 220-240V / 1ph / 50Hz

Hazardous Location

Class 1 Div. 2, Groups B, C, D T3

Refrigerant

R-410A

Weight

Housing Material

Configurations

Product Series

MS Series

Features

Specification

Target Application

Cooling Range

9,000 – 36,000 BTU/hr

Compressor Speed

Inverter-Driven Scroll with Overload Protection

Evaporator Airflow

Condenser Airflow

Reheat System

Controls

Heating Capacity

10,900 – 35,200 BTU/hr (Heat Pump Models)

Quick Specifications

Non Series

Non Series

The WCSK (Cool Only) and WHPSK (Heat Pump) Series provide versatile, compact climate control for hazardous locations. Designed for both land-based and offshore applications, these units feature a slide-out chassis design for easy installation through windows or walls, delivering superior performance in Class I, Division 2 environments.

WCSK & WHPSK Series
WCSK & WHPSK Series

The RT® Series units are engineered to provide superior performance in extreme and hazardous conditions where space is at a premium. With capacities ranging from 13,500 to 15,000 BTU/hr, these compact rooftop units are the ideal solution for crane cabins, guard shacks, and small operator buildings located in Class I, Division 2 environments.

RT Series
RT Series

The VAC Series provides robust, industrial-grade cooling and heating for extreme environments, offered in capacities from 1.5 to 6 tons. For hazardous locations requiring positive pressure, the VACPB model builds upon this platform by integrating an automatic pressurization system compliant with NFPA 496 Type Z, eliminating the need for separate filtration and blower modules.

VAC & VACPB Series
VAC & VACPB Series
